Reference

Keyboard shortcuts

This is the same table the app's own Help → Keyboard Shortcuts sheet shows. Every row here is a key the app really binds — nothing aspirational.

The app's reference sheet prints these as Ctrl. On macOS, works the same as Ctrl for every one of them — the handlers check for either key, not just one.

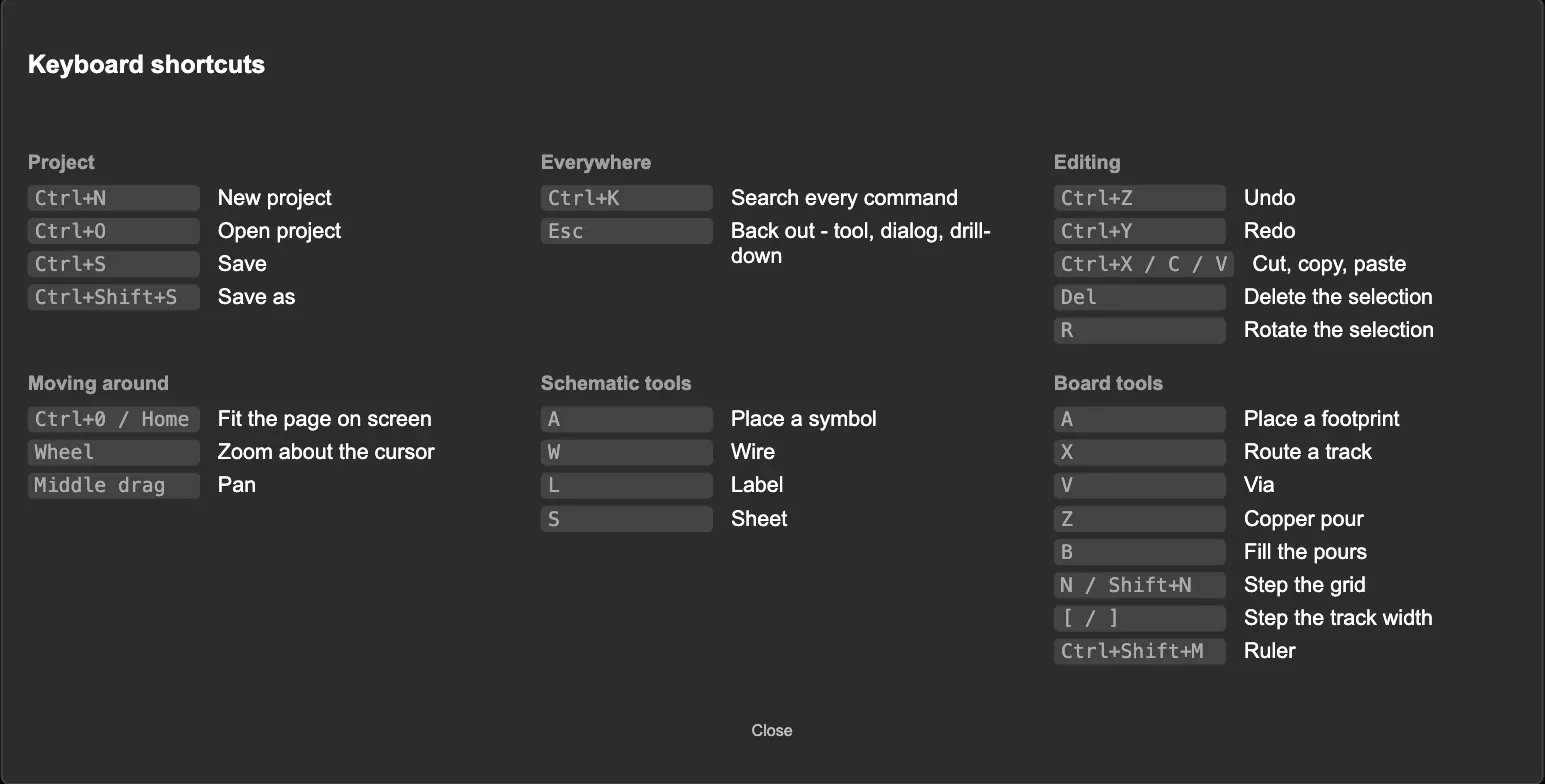

The app's own Keyboard Shortcuts sheet, opened from Help, listing the same bindings grouped as Project, Everywhere, Editing, Moving around, Schematic tools and Board tools.
The app's own Help → Keyboard Shortcuts sheet — the same bindings listed below.

One key reaches everything that has no key of its own: CtrlK opens the command palette, which searches every view, calculator and command by name.

The command palette open over the board editor, with 'route' typed into its search field and ten matching commands listed beneath it.
The command palette, CtrlK — ten commands matched "route".

Project

KeyAction
Ctrl NNew project
Ctrl OOpen project
Ctrl SSave
Ctrl Shift SSave as

Everywhere

KeyAction
Ctrl KSearch every command
EscBack out — tool, dialog, drill-down

Editing

KeyAction
Ctrl ZUndo
Ctrl YRedo
Ctrl X / C / VCut, copy, paste
DelDelete the selection
RRotate the selection

Moving around

KeyAction
Ctrl 0 / HomeFit the page on screen
WheelZoom about the cursor
Middle dragPan

Schematic tools

KeyAction
APlace a symbol
WWire
LLabel
SSheet
The schematic editor's toolbar: select, wire, label, hierarchical sheet, sheet pin, command palette, and view toggles.
The same tools on the schematic toolbar.

Board tools

KeyAction
APlace a footprint
XRoute a track
VVia
ZCopper pour
BFill the pours
N / Shift NStep the grid
[ / ]Step the track width
Ctrl Shift MRuler
The board editor's toolbar: select, place footprint, route a track, place a via, draw a copper zone, draw a board outline, ruler, command palette, and view toggles.
The same tools on the board toolbar.
